P1 port splitter DIN

Description:

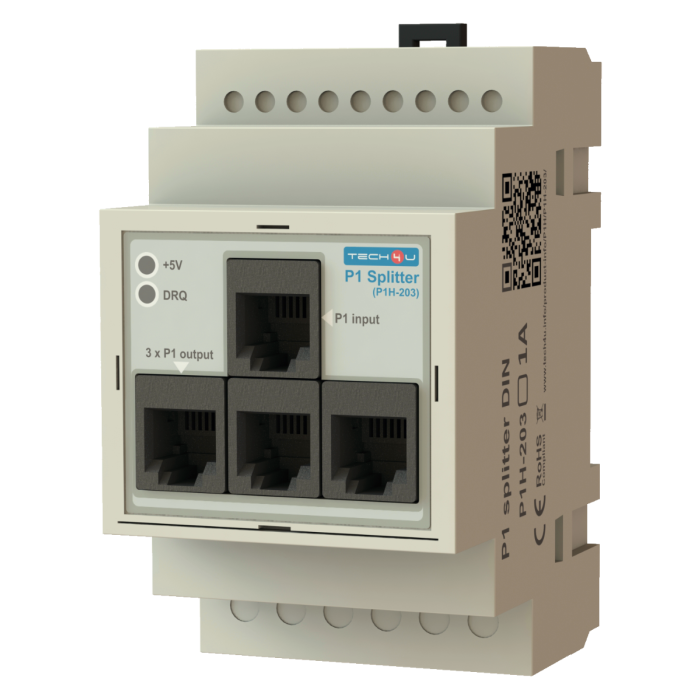

The P1H-203 “P1 Port Splitter DIN” enables the simultaneous connection of up to three P1 modules (OSMs) to a single Smart Meter.
It features active signal regeneration for the DATA line, ensuring stable performance even with RJ-12 cables up to 5 meters in length.

Internal logic circuits manage the DRQ (Data Request) line independently for each module, allowing multiple devices to function in parallel without conflict.

The device is DIN-rail compatible (35 mm), making it ideal for industrial, electrical cabinet, and smart home installations.
Two status LEDs indicate power and DRQ activity.

The P1H-203 is fully compatible with DSMR 4.x, DSMR 5.x, ESMR 5.0, and e-MUCS-H (Belgium) (both P1 and A1).
Tested with the most common smart E-meters available on the European market.

It is suitable for both professional and residential deployments.

More information and the latest documentation can be found on the info page by clicking the button below.
