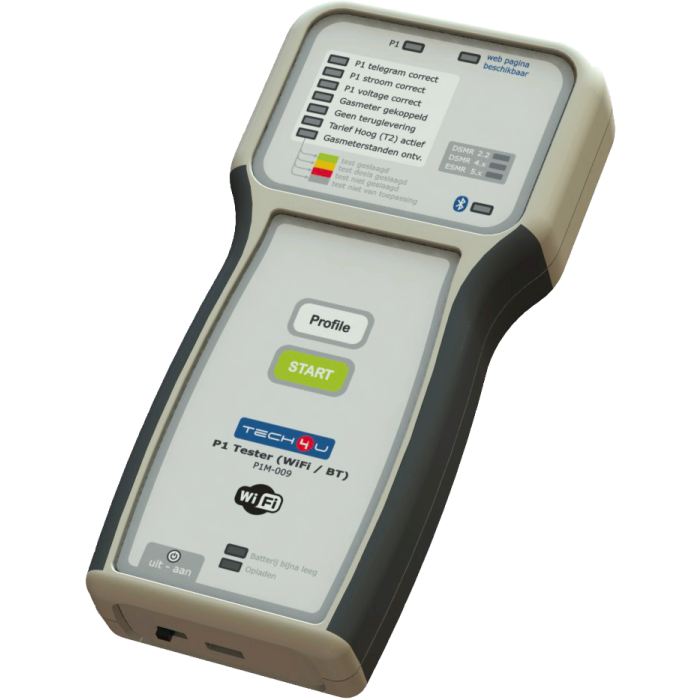

P1 Tester WiFi / Bluetooth

Description:

The device is designed to test and troubleshoot the P1 port of a Smart Meter. Tested are the most important electrical parameters and the correctness of P1 data transfer. Three separate test profiles available, one for DSMR 2.2, one for DSMR 4.0 and one for DSMR 5.0.
The test results are presented directly on the device front panel by means of multi-color LEDs.
The device is equipped with built in WiFi access point and dual mode Bluetooth (EDR and BLE).
All the test details are available on its internal web-page or via Bluetooth (Smartphone Application).
The internal web-page can be accessed by any device via WiFi connection.
Test results can be sent via e-mail.
Compatible with DSMR 2.2, DSMR 4.0 and DSMR 5.0
Parses and converts the P1 data protocol. Checks its correctness.
Tests voltage level on +5V line.
Tests “current parameters” of +5V line.
Rechargeable LiPo battery on board (8 hours of work without recharging)
Test results presented on the front panel and available on the internal webpage.
Test results accessible via WiFi and Bluetooth (dual mode – EDR and BLE).
Test results can be sent via e-mail.
Tested against all major smart meters available on the Dutch market.
